공간은 절약하고, 저장 용량은 극대화한 초저온 냉동고

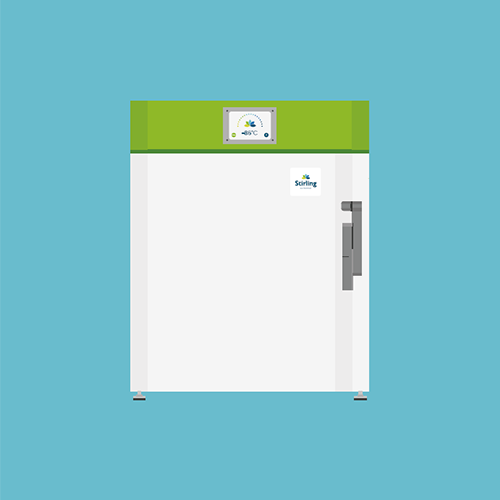

컴팩트한 Stirling SU105UE 로 연구 환경에 큰 변화를

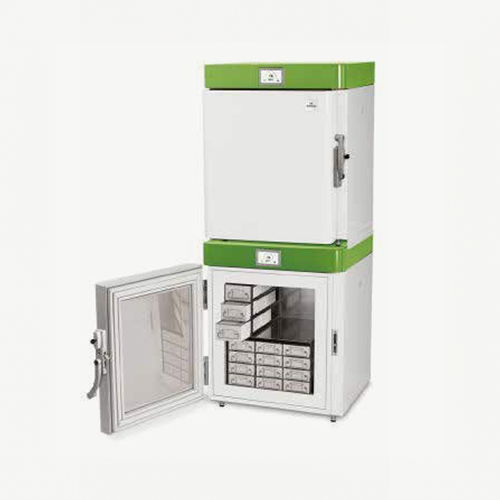

Two SU105UE freezers shown stacked. Stacking adapter kit sold separately.
*Stacking the SU105UE may void UL 471 certification.
Application, rating and electric data
| Item | Specification |
| Application | Storage of general (non-flammable) laboratory materials |
| Storage Volume | 105 liters (3.7 cu.ft.) |
| Storage Capacity | 72 standard 2” boxes in optional racks, available separately |
| Temperature Range | -86°C to -20°C, adjustable to 1°C increments |
| Electric Power † | 100V to 240V (±10%) at either 50 or 60 Hz |
| Power Cord Options Available | Multiple options are available. Consult with your sales representative |
| Maximum Power (Current) | 300 watts (3 amps @120V, 1.5 amps @240V) (±10%) at either 50 or 60 Hz |
| Auto-Voltage Capability | 100V to 240V, 50 or 60 Hz |
| Electric Supply Rating | 15 amp or greater grounded circuit |
| Certification/Agency Listing | CE, cULus |
| Noise | Advanced noise abatement, <48 dB(A) at 1 meter |
| Indoor/Outdoor Use | Indoor use only |
| Application Environment | Non-corrosive, non-flammable, non-explosive |
| Ambient Operating Temp | 5°C to 35°C (41°F to 95°F) |
Refrigeration system
| Item | Specification |
| Cooling Engine | Helium charged free-piston Stirling engine with continuous modulation |
| Heat Transport System | Gravity driven thermosiphon |
| Refrigerant | R-170 (Ethane) 30–33 grams |
| Evaporator | Cold wall (inner liner) |
| Heat Rejection | Finned heat exchanger with forced air cooling Air inlet: Above freezer door, below mechanical compartment Air outlet: Underneath of rear right corner bottom |
| Defrost Method | Manual |
Performance data
| Item | Specification |
| Steady State Energy Use | < 4 kWh/day at -80°C |
| Pull-Down from 25°C Ambient | 12 hours to -80°C (Empty Cabinet) |
| Recovery from Door Opening (ENERGY STAR® Final Test Method) | 40 minutes at -80°C |
| Warm-up Profile | 2 hours to -60°C at -80°C (Empty Cabinet) 5.2 hours to -40°C at -80°C (Empty Cabinet) |
| Heat Dissipation | 569 BTU/h (load to HVAC) at -80°C (Empty Cabinet) |
Controller
| Item | Specification |
| Interface | Graphic user touchscreen interface |
| Controller Type | Microprocessor with touchscreen input and display |
| Security | Lockable door Optional PIN requirement built in |
| Warm and Cold Alarms | Fully adjustable |
| Control Sensor | RTD (PT100 Class A) |
| Event Log | All alarms, door openings |
| Dry Contacts | Normally closed, normally open, common; activated by power outage or any alarm condition (24 Vdc maximum/500mA maximum) |
| Temperature Log | 30 days available graphically |
| Battery Back-up | 12 hour control battery back-up for touchscreen (6V lead acid battery) |
| Internet Connectivity | Optional SenseAnywhere wireless temperature monitoring and logging |
Dimensions and construction
| Item | Specification |
| Interior (H x D x W) | 533 x 432 x 457 mm / (21 x 17 x 18 in.) |
| Exterior (H x D x W) | 864 x 711 x 686 mm / (34 x 28 x 27 in.) |
| Net Weight, Empty | 100 kg (220 lbs.) |
| Shipping (H x D x W) | 1079.5 x 838.2 x 838.2 mm / (42.5 x 33 x 33 in.) |
| Shipping Weight | 121 kg (266 lbs.) |
| Insulation | High performance vacuum insulated panels and polyurethane foam using Ecomate® environmentally friendly, SNAP-compliant blowing agent |
| Gasket Heater | User programmable duty cycle |
| Shelves | 1 stainless steel, fixed position (removable) |
† The freezer operates on nominal 120V or 240V, 50 or 60Hz AC, over a wide voltage range from 85V to 264V. There is no need for special wiring or a 20 amp breaker on a 120V line. Heat rejection is minimal. The cooling air is drawn in over the top of the door and warm air exits at the right rear of the cabinet.
